Ultrasound Recognition Challenge

Can You Identify These Ultrasound Images?

Look at each unlabeled image before revealing the answer. Practice connecting image pattern, anatomy, probe type, scanning plane, probe notch orientation, image optimization, and clinical use in one strong visual format.

Start the Challenge Browse All Practice Back to MedSkillBuilder
7 visual challenges
5 probe types
Elite quiz + teaching

How This Works

Do not scroll straight to the answer. First, study the image and make a guess. Then open the answer reveal to check your thinking.

1. Identify the image Decide what anatomy or view you are seeing before opening the answer.
2. Pick the probe Decide whether the exam likely uses a phased array, curvilinear, linear, CW Doppler, or endocavity probe.
3. Know the use Connect the image to a real clinical application.
4. Notice first Focus on the first visual cue that helps you recognize the image faster next time.
5. Think orientation Ask whether the view is transverse, sagittal, longitudinal, or short axis.
6. Optimize the image Decide whether depth, gain, TGC, focus, gel, or probe angle would improve the scan.
Most people get these wrong at first. Try each one before revealing the answer.
Challenge #1

What Are You Looking At?

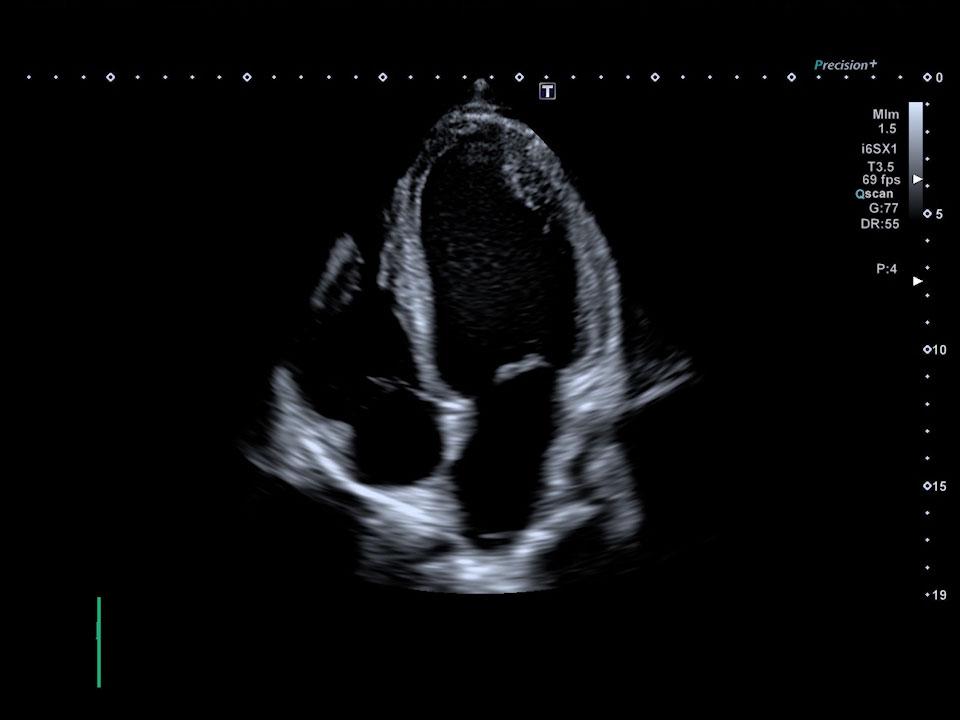

Unlabeled ultrasound image challenge number one
Unlabeled ultrasound image. Try to identify the view before revealing the answer.

Before You Reveal

Study the image and answer these questions:

  • What view or anatomy is shown?
  • What probe would commonly be used?
  • What is this exam used to evaluate?
Reveal Answer
View: Apical 4-chamber cardiac ultrasound view
Anatomy: Right atrium, right ventricle, left atrium, left ventricle
Probe: Phased array probe
Application: Echocardiography and cardiac function assessment
What to notice first: look for four chambers and compare chamber size and movement.
Probe Used: Phased Array Phased array ultrasound probe

Small footprint helps image between the ribs for cardiac views.

Challenge #2

What Are You Looking At?

Unlabeled ultrasound image challenge number two

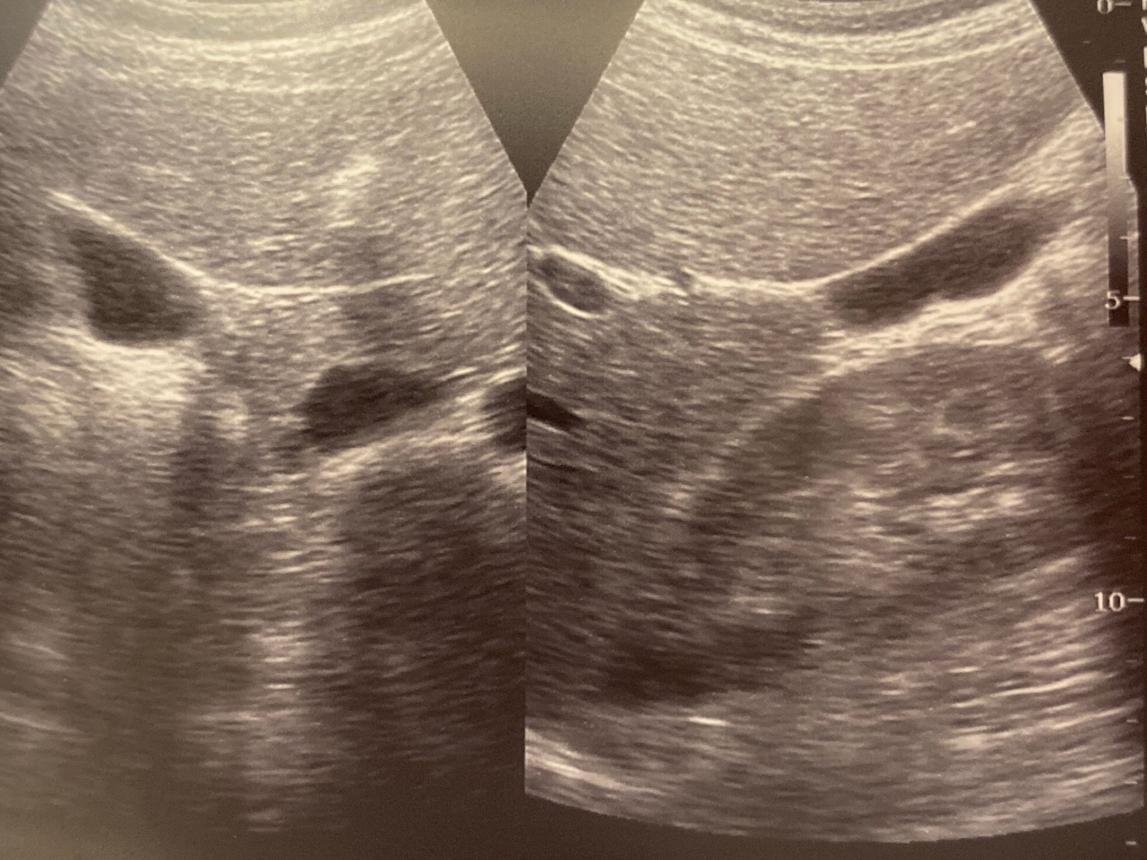

Unlabeled ultrasound image. Look for the first major visual clue.

Before You Reveal

Study the image and answer these questions:

  • What body area is being evaluated?
  • What probe may be used?
  • What clinical question can this help answer?
Reveal Answer
Image Type: Lung ultrasound image
Key Concept: Lung sliding helps confirm pleural movement
Probe: Linear or curvilinear depending on depth and exam goal
Application: Bedside lung assessment, pleural evaluation, and pneumothorax screening
What to notice first: find the pleural line and look for movement or artifact patterns.
Probe Often Used: Linear Linear ultrasound probe

Linear probes provide high-resolution imaging of shallow structures.

Challenge #3

What Are You Looking At?

Unlabeled ultrasound image challenge number three

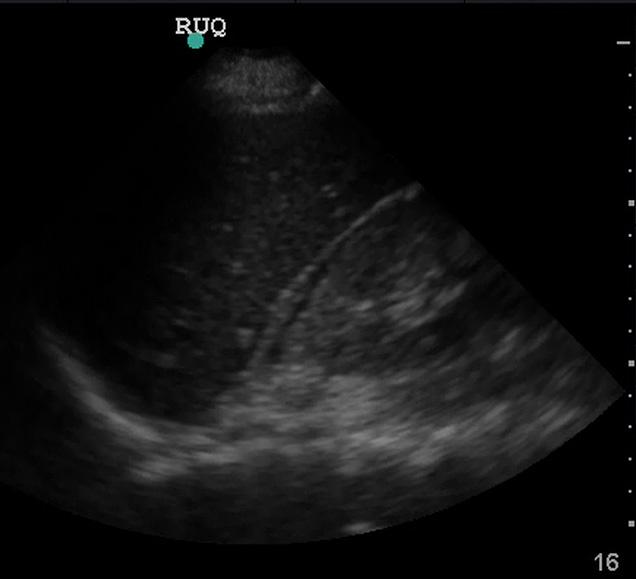

Unlabeled ultrasound image. Try to identify the anatomy and the space being checked.

Before You Reveal

Study the image and answer these questions:

  • What two structures are visible?
  • What space is being evaluated?
  • What probe is commonly used?
Reveal Answer
Anatomy: Liver and right kidney
Space: Morison’s pouch
Probe: Curvilinear probe
Application: FAST exam and evaluation for free fluid
What to notice first: look between the liver and kidney for a fluid collection.
Probe Used: Curvilinear Curvilinear ultrasound probe

Curvilinear probes are commonly used for deeper abdominal imaging.

Challenge #4

What Are You Looking At?

Unlabeled ultrasound image challenge number four

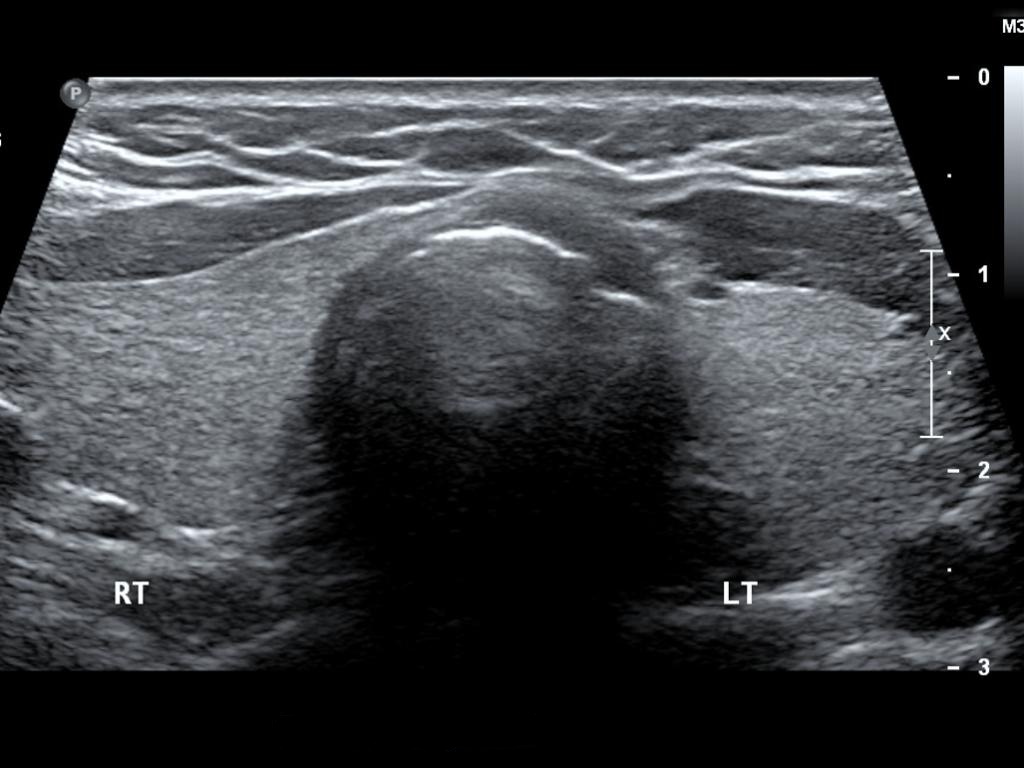

Unlabeled ultrasound image. Think superficial anatomy and probe choice.

Before You Reveal

Study the image and answer these questions:

  • What structure is shown?
  • What probe is typically used?
  • Why is this image usually high resolution?
Reveal Answer
Structure: Thyroid gland
Probe: Linear probe
Application: Thyroid size, nodules, and superficial neck anatomy evaluation
Why high resolution: The thyroid is superficial, so a high-frequency probe can be used
What to notice first: superficial structures are usually best seen with a high-frequency linear probe.
Probe Used: Linear Linear ultrasound probe

Linear probes are ideal for thyroid and other shallow structures.

Challenge #5

What Are You Looking At?

Unlabeled ultrasound image challenge number five

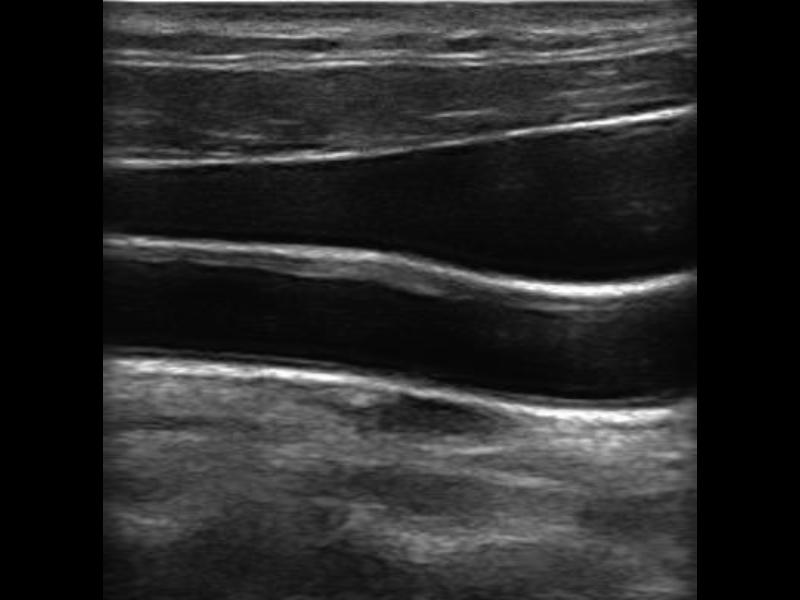

Unlabeled ultrasound image. Decide which structure behaves like a vein.

Before You Reveal

Study the image and answer these questions:

  • Which structure is the vein?
  • How can you tell the vein from the artery?
  • What probe is commonly used?
Reveal Answer
Internal Jugular Vein: Usually larger and compressible
Carotid Artery: Usually round, pulsatile, and less compressible
Probe: Linear probe
Application: Central line placement and vascular access guidance
What to notice first: the vein changes shape with pressure. The artery tends to stay round and pulsatile.
Probe Used: Linear Linear ultrasound probe

Linear probes are commonly used for vascular access because the anatomy is superficial.

Challenge #6

Which Probe Does Not Create an Image?

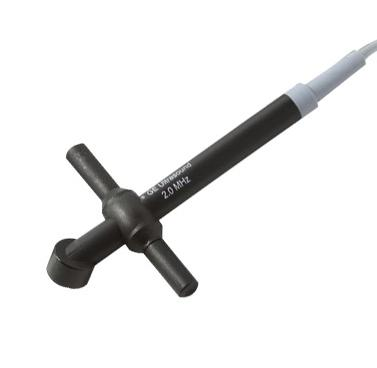

Continuous wave Doppler pencil probe challenge
Probe challenge. This one is used for sound and velocity, not imaging.

Before You Reveal

Study the probe and answer these questions:

  • What type of probe is this?
  • Does it create a picture?
  • What is it used to measure?
Reveal Answer
Probe: Continuous Wave Doppler probe, often called a pencil Doppler probe
Image: It does not create a 2D ultrasound image
Use: Measures blood flow velocity using sound and Doppler signal
Common Application: Echocardiography, valve assessment, and high-velocity flow detection
What to notice first: this probe is for flow information, not anatomy pictures. It helps detect and measure blood moving through vessels or valves.
Probe Used: Continuous Wave Doppler Continuous wave Doppler probe

This probe does not create an image. It only detects blood flow velocity using sound.

Challenge #7

Which Probe Is Used Internally?

Endocavity ultrasound probe challenge
Probe challenge. Think close contact, high detail, and internal imaging.

Before You Reveal

Study the probe and answer these questions:

  • What type of probe is this?
  • Why does it provide high-resolution images?
  • What exams commonly use this type of probe?
Reveal Answer
Probe: Endocavity probe, also called endocavitary, transvaginal, or transrectal depending on use
Why high resolution: The probe is placed closer to the anatomy being imaged
Application: Pelvic imaging, early pregnancy evaluation, and prostate evaluation
Key Concept: Shorter distance to the organ allows better detail for nearby structures
What to notice first: endocavity probes are designed to get closer to internal anatomy, improving image detail.
Probe Used: Endocavity Endocavity ultrasound probe

Used for internal imaging when close proximity to the anatomy gives better resolution.

Probe Notch and Image Orientation

The probe notch, groove, light, or marker is one of the most important orientation clues in ultrasound. It tells the operator which side of the probe corresponds to the screen indicator. If the image looks reversed or confusing, the first thing to check is often the probe notch.

Notch = Screen Indicator The probe notch corresponds to the screen marker. By common convention, that marker appears on the left side of the image.
Transverse / Short Axis The probe cuts across a structure. Vessels usually look round. For many exams, the notch is pointed toward the patient’s right.
Sagittal / Longitudinal / Long Axis The probe follows the length of a structure. Vessels, muscles, or organs appear stretched out instead of round.
Rotate the Probe If you rotate the probe, the image rotates. A confusing image may be an orientation issue, not an anatomy issue.
What to notice first: round vessels usually suggest transverse or short-axis imaging. Long tube-like structures usually suggest longitudinal or long-axis imaging.

Elite Ultrasound Quiz: Planes, Probes, Notches, TGC and Image Quality

This is a true thinking quiz. Pick an answer first, then check your answer. Teaching appears only after you answer so the quiz does not give itself away.

0 / 12 Questions correct
0 / 12 Questions answered
Not started Current level

Question 1: Scanning Plane Challenge

You are scanning the internal jugular vein and carotid artery in short axis. The vessels appear mostly round on the screen. Which imaging plane are you most likely using?

Correct Answer: B. Transverse / short axis

Teaching: Short axis cuts across the vessel, so the IJ and carotid usually look round or oval.

What to notice first: Round vessels usually mean transverse or short-axis view.

Why A is wrong: Longitudinal views follow the vessel length, so the vessel appears tube-like instead of round.

Question 2: Orientation Challenge

You are scanning the IJ in transverse view. The probe notch is pointed toward the patient’s right. Which side of the screen usually represents the patient’s right side?

Correct Answer: A. Left side of the screen

Teaching: The notch corresponds to the screen indicator. If the notch points to patient right, patient right appears on the indicator side.

What to notice first: Always check the notch before deciding left vs right.

Why D is wrong: The notch is specifically there to give the image orientation.

Question 3: Probe Rotation Challenge

You rotate the probe 90 degrees and now the vessel appears as a long dark tube instead of a circle. What view are you most likely seeing?

Correct Answer: B. Longitudinal / long axis

Teaching: Long axis follows the length of the structure, so a vessel looks like a long tube.

What to notice first: Tube-like structure means long axis. Round structure means short axis.

Question 4: Probe Function Challenge

A small pencil-style probe on an echo machine produces sound and velocity information but no 2D picture. What probe is this?

Correct Answer: C. Continuous Wave Doppler probe

Teaching: CW Doppler measures blood flow velocity using sound and Doppler signal. It does not produce a 2D anatomy image.

What to notice first: Flow only, no image means CW Doppler.

Question 5: Probe Selection Challenge

You need high-resolution imaging of the thyroid gland. Which probe is the best starting choice?

Correct Answer: A. Linear probe

Teaching: The thyroid is superficial. A high-frequency linear probe gives better detail for shallow structures.

What to notice first: Superficial anatomy usually means linear probe.

Why B is wrong: Curvilinear probes are better for deeper abdomen, not shallow high-detail neck structures.

Question 6: Abdominal Imaging Challenge

You are trying to evaluate the liver and right kidney area for possible free fluid. Which probe is commonly used?

Correct Answer: A. Curvilinear probe

Teaching: RUQ FAST views often require deeper penetration to see abdominal anatomy.

What to notice first: Deep abdomen usually means curvilinear.

Question 7: Image Brightness Challenge

The top of the ultrasound image is bright, but the deeper part of the image is too dark. Which control is most directly designed to adjust brightness at different depths?

Correct Answer: A. TGC sliders

Teaching: Time gain compensation changes brightness by depth, helping balance near field and far field brightness.

What to notice first: Uneven brightness from top to bottom often points to TGC adjustment.

Question 8: Image Focus Challenge

You are imaging a target structure in the middle of the screen. Where should the focal zone usually be placed?

Correct Answer: A. At or just below the structure of interest

Teaching: The focal zone improves detail around a chosen depth, so place it near the anatomy you care about.

What to notice first: If the target is blurry, check focus placement.

Question 9: Image Quality Challenge

The image is weak and patchy because there is air between the probe and skin. What is the best first correction?

Correct Answer: A. Add gel and improve probe contact

Teaching: Air blocks ultrasound transmission. Gel removes air and improves coupling.

What to notice first: Dropout or patchy image can be a coupling problem.

Why D is wrong: Air is the enemy of ultrasound transmission at the probe-skin interface.

Question 10: Depth Challenge

The thyroid and IJ are usually located close to the probe. Which image region are they typically in?

Correct Answer: A. Near field

Teaching: The near field is the shallow region closest to the probe. Superficial structures appear there.

What to notice first: Shallow anatomy sits near the top of the image.

Question 11: Internal Probe Challenge

A long internal probe is used to get closer to pelvic anatomy and improve detail. What probe type is this?

Correct Answer: A. Endocavity probe

Teaching: Endocavity probes are used internally, placing the transducer closer to the anatomy for better resolution.

What to notice first: Long internal probe shape usually points to endocavity use.

Question 12: Vessel Compression Challenge

While scanning the IJ, you press too hard and the vein disappears. What likely happened?

Correct Answer: A. The vein compressed

Teaching: Veins are more compressible than arteries. Too much pressure can collapse the vein and make it hard to see.

What to notice first: If a vessel disappears with pressure, think vein compression.

Quiz takeaway: strong ultrasound learners do more than name the anatomy. They think about plane, probe, notch, image quality, and what adjustment would improve the scan.

Ultrasound Probe Quick Guide

Probe selection depends on the depth of the structure, the size of the imaging window, and the level of detail needed.

Phased Array

Phased array ultrasound probe

Best for cardiac imaging. The small footprint helps image between ribs.

Curvilinear

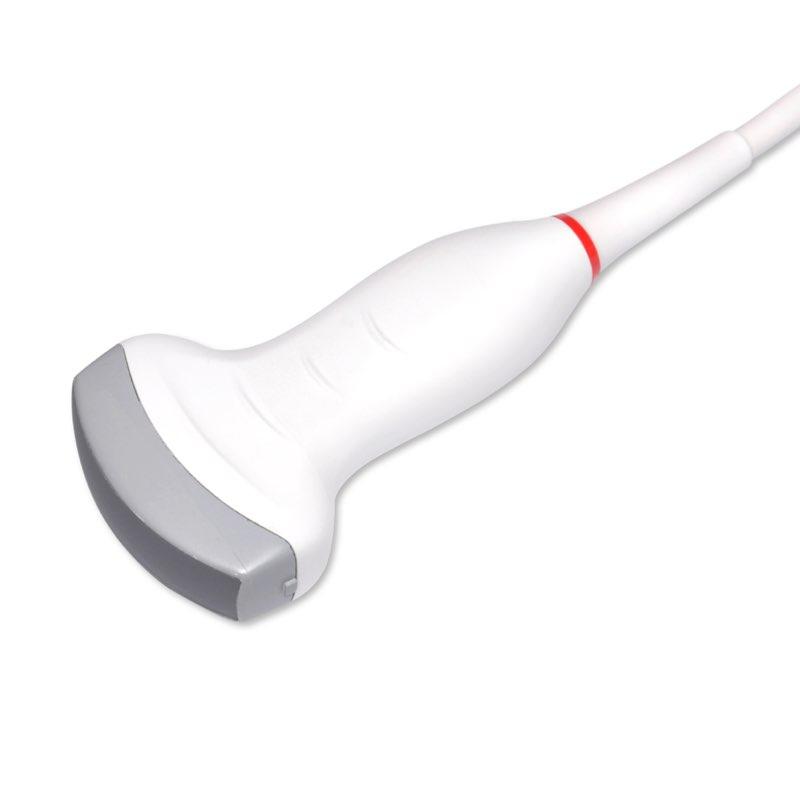

Curvilinear ultrasound probe

Best for deeper abdominal imaging such as RUQ, abdomen, and FAST exam views.

Linear

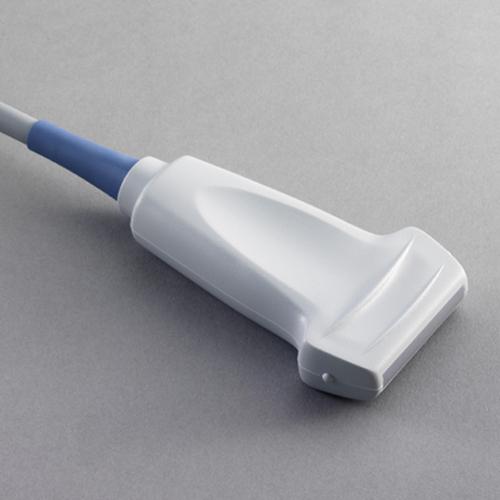

Linear ultrasound probe

Best for superficial structures such as thyroid, vessels, IJ access, and vascular imaging.

Continuous Wave Doppler

Continuous wave Doppler pencil probe

Does not create a picture. It detects blood flow velocity using Doppler sound and is commonly used in echo.

Endocavity

Endocavity ultrasound probe

Used for internal imaging such as pelvic, early pregnancy, and prostate evaluation where close detail is needed.

Ultrasound Image Optimization Basics

Image quality is not only about the probe. The operator also adjusts depth, gain, TGC, focal zone, and coupling to improve the image. These basics help learners understand why the same anatomy can look clear in one image and poor in another.

Near Field The near field is the shallow area closest to the probe. Superficial structures like thyroid, IJ, and vessels often sit in the near field.
Far Field The far field is deeper in the image. Abdominal views such as RUQ or FAST exams require enough penetration to see deeper anatomy.
TGC Sliders Time gain compensation adjusts brightness at different depths. If the top is too bright or the bottom is too dark, TGC helps balance the image.
Focal Zone The focal zone should be placed at or just below the structure of interest. This improves detail where you need it most.
What to notice first: if the target is too dark, too bright, too deep, or blurry, the problem may be depth, gain, TGC, focus, or coupling — not the anatomy.

Gel and Proper Coupling

Ultrasound needs good contact between the probe and the skin. Gel removes air between the probe face and the patient. Without gel or proper coupling, the sound beam does not transmit well and the image can become weak, noisy, or incomplete.

Gel Removes Air Air blocks ultrasound transmission. Gel creates a smooth pathway between the probe and the skin.
Contact Matters The probe face should sit flat enough to maintain contact. Poor contact can create dropout or missing parts of the image.
Pressure Changes the Image Gentle pressure can improve coupling, but too much pressure can compress vessels or distort anatomy.
Probe Angle Matters Small angle changes can improve the image. If the structure disappears, adjust the angle before assuming it is not there.

Beginner Ultrasound Tips

Superficial = linear Thyroid, vessels, and IJ access commonly use a linear probe.
Deep abdomen = curvilinear RUQ and FAST exam views usually need deeper penetration.
Heart = phased array Cardiac views need a smaller footprint to scan between ribs.
Pattern first Do not memorize only words. Learn the first visual clue that tells you what you are seeing.
CW Doppler = flow only A CW Doppler pencil probe does not create a 2D image. It is used for blood flow velocity and Doppler sound.
Endocavity = close detail Endocavity probes place the transducer closer to internal anatomy for better resolution.
Gel = signal pathway Gel improves coupling by removing air between the probe and the skin.
Notch = orientation The probe marker tells you which side of the image corresponds to the screen indicator.
Short axis vs long axis Short axis cuts across a structure. Long axis follows the length of a structure.
Educational note: This page is for learning and image-recognition practice only. It is not a substitute for formal ultrasound training, clinical supervision, or medical decision-making.

Keep Practicing

Build confidence by connecting anatomy, probe selection, and clinical purpose. Try another MedSkillBuilder practice tool below.

Anatomy Labeling Practice Practice anatomy recognition with interactive labeling. EKG Rhythm Cheat Sheet Review rhythm basics and waveform recognition. Lab Values Practice Test common lab values and clinical meaning. Medical Equipment Identification Build real-world clinical equipment recognition. Browse All Practice Tests See every MedSkillBuilder practice tool and study guide.
